A2F glycan (FA2G2S2, G2FS2), APTS labelled

A2F glycan (FA2G2S2, G2FS2), APTS labelled


  • Product Code: CAPTS-A2F-01
  • Size 20 pmol

  • £64
  • Ex Tax: £64

References


Bunz SC, Rapp E, Neusüss C. Capillary electrophoresis/mass spectrometry of APTS-labeled glycans for the identification of unknown glycan species in capillary electrophoresis/laser-induced fluorescence systems. Anal Chem. 2013 Nov 5;85(21):10218-24. doi: 10.1021/ac401930j. Epub 2013 Oct 15.

Bunz SC, Cutillo F, Neusüß C. Analysis of native and APTS-labeled N-glycans by capillary electrophoresis/time-of-flight mass spectrometry. Anal Bioanal Chem. 2013 Oct;405(25):8277-84. doi: 10.1007/s00216-013-7231-4. Epub 2013 Aug 3.

Patrick JS, Rener BP, Clanton GS, Lagu AL. Analysis of neutral N-linked oligosaccharides from antibodies using free-solution capillary electrophoresis in bare fused-silica capillaries. Methods Mol Biol (2004) 276:137-151.

Wang CY, Hsieh YZ. Analysis of chitin oligosaccharides by capillary electrophoresis with laser-induced fluorescence. J Chromatogr A (2002) 979:431-438

Chen FT, Evangelista RA. Profiling glycoprotein n-linked oligosaccharide by capillary electrophoresis. Electrophoresis (1998) 19:2639-2644.

Guttman A, Chen FT, Evangelista RA, Cooke N.References High-resolution capillary gel electrophoresis of reducing oligosaccharides labeled with 1-aminopyrene-3,6,8-trisulfonate. Anal Biochem (1996) 233:234-242

Guttman A, Chen FT, Evangelista RA. Separation of 1-aminopyrene-3,6,8-trisulfonate-labeled asparagine-linked fetuin glycans by capillary gel electrophoresis. Electrophoresis (1996) 17:412-417.

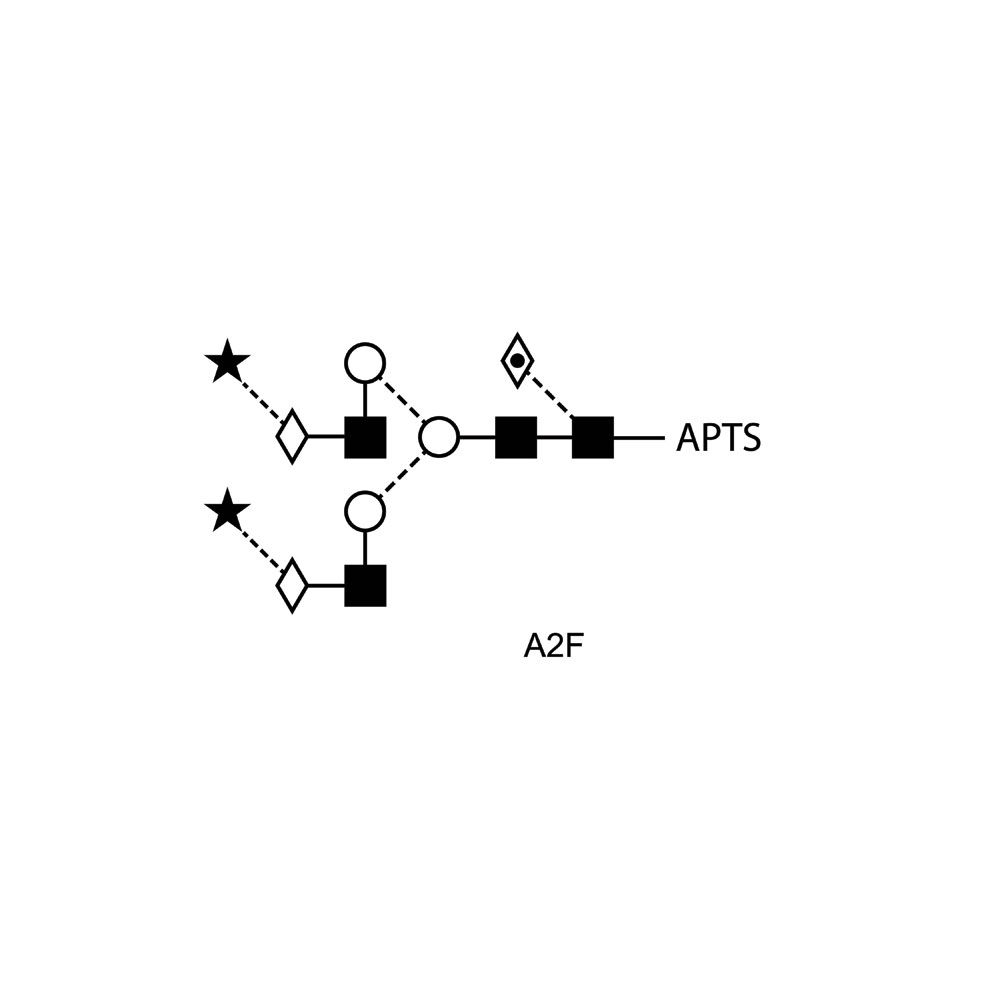

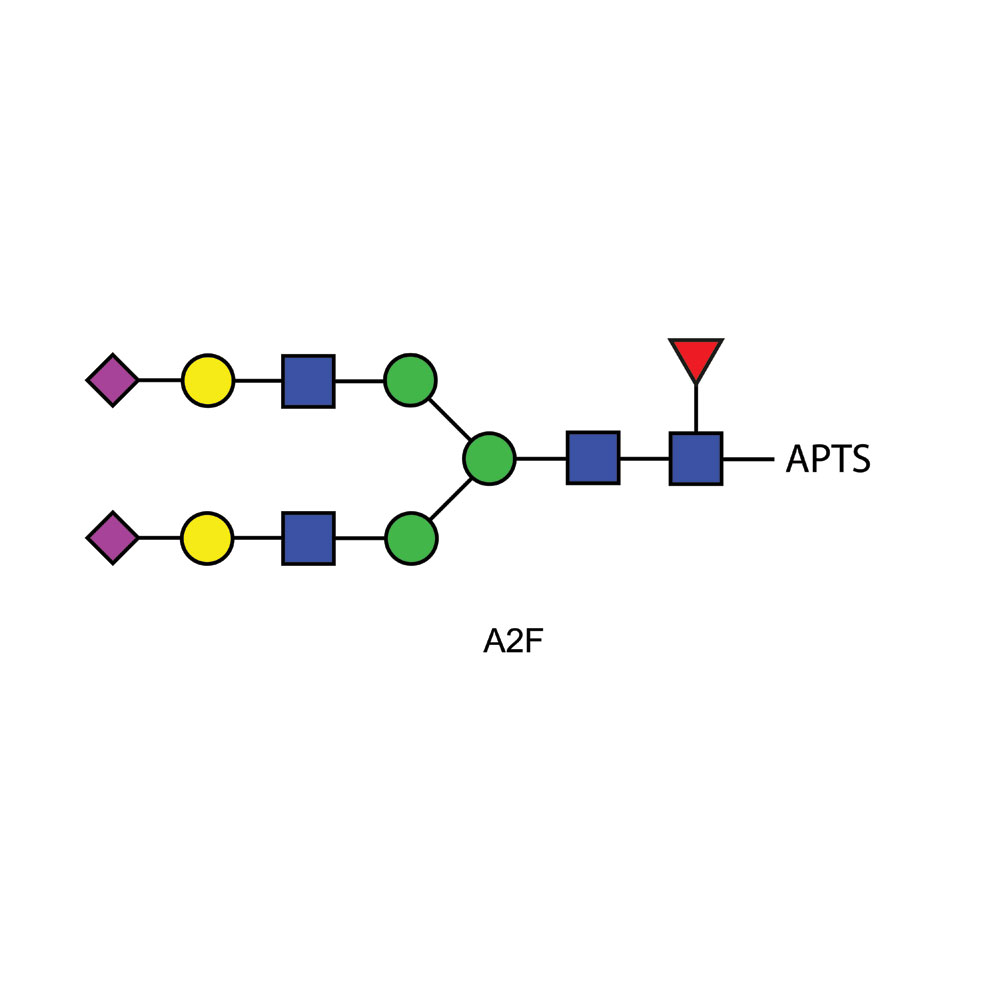

APTS labelled core-fucosylated disialo biantennary oligosaccharide

Biantennary N-glycan that contains terminal sialic acid residues, and fucosylation on the core GlcNAc, 20pmol.
m/z: 2809.8056

View product documentation:

SDS

View Certificate of Stabilty

Product Specification


A2F APTS Glycan Synonyms: A2F N-linked oligosaccharide. G2FS2, FA2G2S2, F(6)A2G(4)2S(6)2

Description: Di-sialylated, core-fucosylated bi-antennary complex-type N-glycan (oligosaccharide).

Sources: A2F glycan is found on many mammalian glycoproteins including IgG, gamma globulins, and many serum glycoproteins. This product is typically purified from the oligosaccharide pool released from bovine serum by hydrazinolysis using a combination of HPLC and glycosidase digestion.

Form: Dry. Dried by centrifugal evaporation from an aqueous solution. Contains ammonium salt to stabilise against desialylation.

Molecular Weight: 2812

Fluorescence: λex = 425 nm, λem = 503 nm.

Amount: 20 pmols

Purity: >80% pure as assessed by HPLC.

Storage: -20˚C both before and after dissolution. This product is stable for at least 5 years as supplied.

Shipping: The A2F APTS glycan can be shipped at ambient when dry. After dissolution, ship on dry ice.

Handling: Allow the unopened vial to reach ambient temperature and tap unopened on a solid surface to ensure that most of the lyophilized material is at the bottom of the vial. Gently remove the cap, add the desired volume of reconstitution medium, re-cap and mix thoroughly to bring all the oligosaccharide into solution. For maximal recovery of oligosaccharide, ensure that the cap lining is also rinsed and centrifuge the reconstituted vial briefly before use. Ensure that any glass, plasticware or solvents used are free of glycosidases and environmental carbohydrates. Minimise exposure to elevated temperatures or extremes of pH. High temperatures and low pH will cause desialylation. High pH will cause epimerisation of the reducing terminus GlcNAc.

Safety: This product is non-hazardous and has been purified from natural sources certified to be free of all hazardous material including pathogenic biological agents.
