2-AB Labelled N-Glycan Standards


View product documentation: Product Overview / 2-AB Labelled Glycan Stability Certificate / SDS



A4 Family Glycans

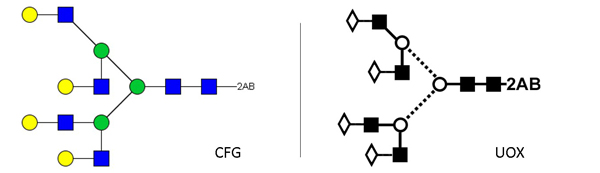

  • NA4 glycan (A4G4), 2-AB labelled

    CAB-NA4-01

    Tetraantennary N-glycan that contains terminal galactose residues, 100pmol.

    m/z: 2490.9253

  • NGA4 glycan (A4), 2-AB labelled

    CAB-NGA4-01

    Tetraantennary N-glycan that contains terminal N-acetylglucosamine residues, 100pmol.

    m/z: 1842.7140


A3 Family Glycans

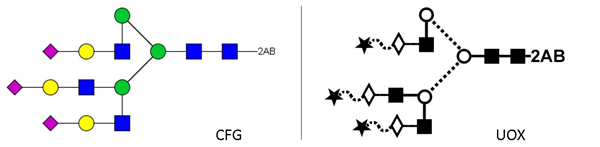

  • A3 glycan (A3G3S3), 2-AB labelled

    CAB-A3-01

    Triantennary N-glycan that contains terminal sialic acid residues, 100pmol.

    m/z: 2999.0794

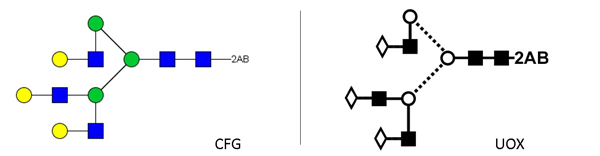

  • NA3 glycan (A3G3), 2-AB labelled

    CAB-NA3-01

    Triantennary N-glycan that contains terminal galactose residues, 100pmol.

    m/z: 2125.7931

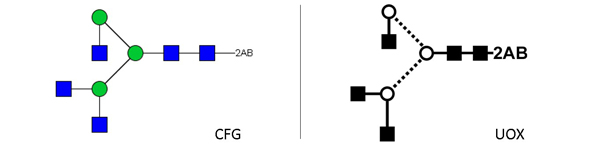

  • NGA3 glycan (A3), 2-AB labelled

    CAB-NGA3-01

    Triantennary N-glycan that contains terminal N-acetylglucosamine residues, 100pmol.

    m/z: 1639.6346


A2F Family Glycans

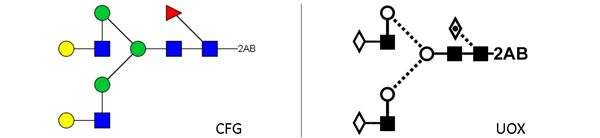

  • NA2F glycan (FA2G2, G2F), 2-AB labelled

    CAB-NA2F-01

    Biantennary N-glycan that contains terminal galactose residues and fucosylation on the core GlcNAc, 100pmol.

    m/z: 1906.7188

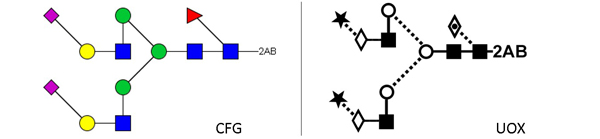

  • A2F glycan (FA2G2S2, G2FS2), 2-AB labelled

    CAB-A2F-01

    Biantennary N-glycan that contains terminal sialic acid residues, and fucosylation on the core GlcNAc, 100pmol.

    m/z: 2488.9097

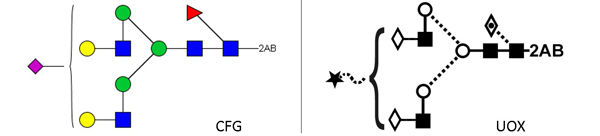

  • A1F glycan (FA2G2S1, G2FS1), 2-AB labelled

    CAB-A1F-01

    Biantennary N-glycan that contains one terminal sialic acid residue, and fucosylation on the core GlcNAc, 100pmol.

    m/z: 2197.8142

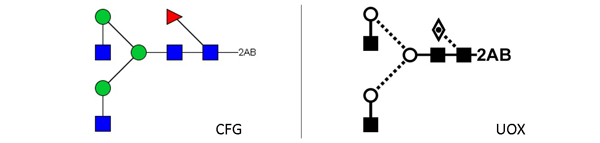

  • NGA2F glycan (FA2, G0F), 2-AB labelled

    CAB-NGA2F-01

    Biantennary N-glycan that contains terminal N-acetylglucosamine residues, and fucosylation on the core GlcNAc, 100pmol.

    m/z: 1582.6132

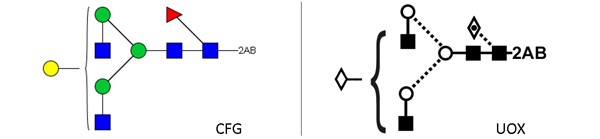

  • FA2G1 glycan (G1F), 2-AB labelled

    CAB-FA2G1-01

    Biantennary N-glycan that contains one terminal galactose residue, and fucosylation on the core GlcNAc, 100pmol.

    m/z: 1744.6660

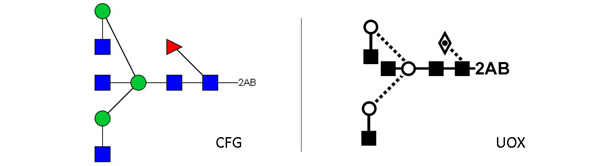

  • FA2B glycan (G0B), 2-AB labelled

    CAB-FA2B-01

    Biantennary N-glycan that contains terminal N-acetylglucosamine residues, a bisecting GlcNAc on the pentasaccharide core, and fucosylation on the core GlcNAc, 100pmol.

    m/z: 1785.6926

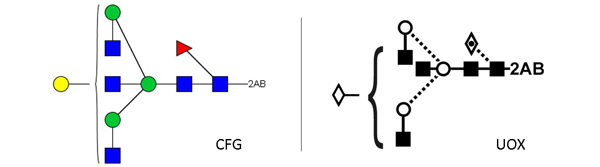

  • FA2BG1 glycan (G1B), 2-AB labelled

    CAB-FA2BG1-01

    Biantennary N-glycan that contains one terminal galactose residue, a bisecting GlcNAc on the pentasaccharide core, and fucosylation on the core GlcNAc, 100pmol.

    m/z: 1947.7454


A2 Family Glycans

  • A2 glycan (A2G2S2, G2S2), 2-AB labelled

    CAB-A2-01

    Biantennary N-glycan that contains terminal sialic acid residues, 100pmol.

    m/z: 2342.8518

  • A1 glycan (A2G2S1, G2S1), 2-AB labelled

    CAB-A1-01

    Biantennary N-glycan that contains one terminal sialic acid residue, 100pmol.

    m/z: 2051.7563

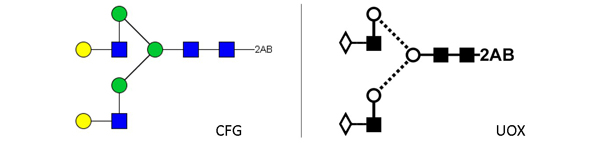

  • NA2 glycan (A2G2, G2), 2-AB labelled

    CAB-NA2-01

    Biantennary N-glycan that contains terminal galactose residues, 100pmol.

    m/z: 1760.6609

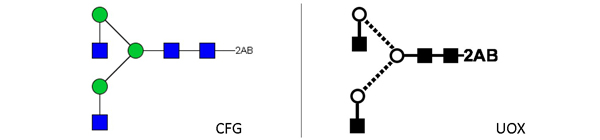

  • NGA2 glycan (A2, G0), 2-AB labelled

    CAB-NGA2-01

    Biantennary N-glycan that contains terminal N-acetylglucosamine residues, 100pmol.

    m/z: 1436.5553

  • A2G1 glycan (G1), 2-AB labelled

    CAB-A2G1-01

    Biantennary N-glycan that contains one terminal galactose residue, 100pmol.

    m/z: 1598.6081


Oligomannose Glycans

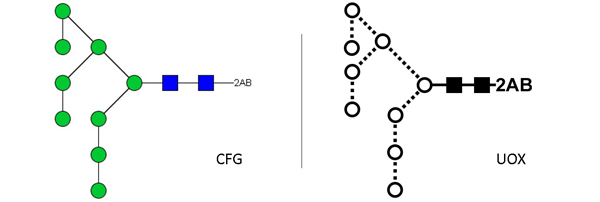

  • Man-9 glycan, 2-AB labelled

    CAB-MAN9-01

    Oligomannose N-glycan with 9 mannose residues, 100pmol.

    m/z: 2002.7135

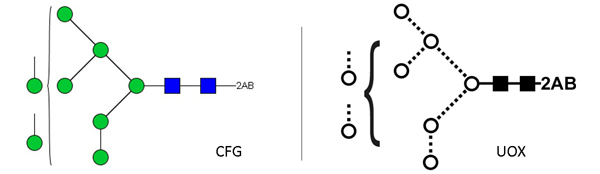

  • Man-8 glycan, 2-AB labelled

    CAB-MAN8-01

    Oligomannose N-glycan with 8 mannose residues, 100pmol.

    m/z: 1840.6606

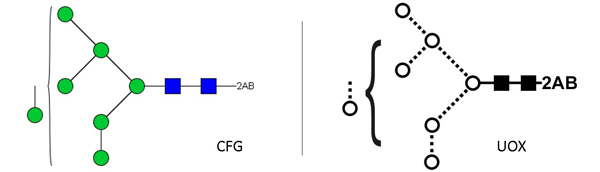

  • Man-7 glycan, 2-AB labelled

    CAB-MAN7-01

    Oligomannose N-glycan with 7 mannose residues, 100pmol.

    m/z: 1678.6078

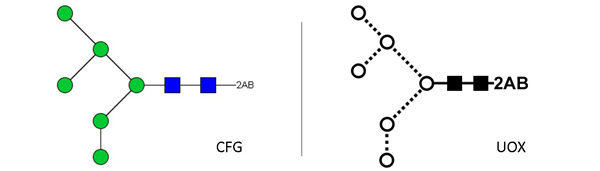

  • Man-6 glycan, 2-AB labelled

    CAB-MAN6-01

    Oligomannose N-glycan with 6 mannose residues, 100pmol.

    m/z: 1516.5550

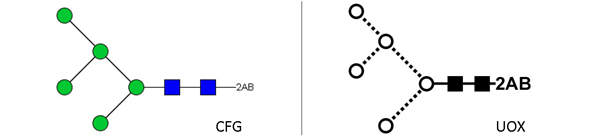

  • Man-5 glycan, 2-AB labelled

    CAB-MAN5-01

    Oligomannose N-glycan with 5 mannose residues, 100pmol.

    m/z: 1354.5022

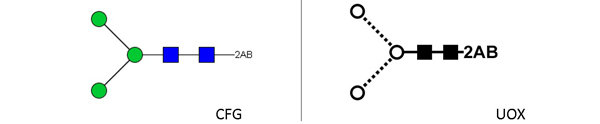

  • M3N2 (Man-3) glycan, 2-AB labelled

    CAB-M3N2-01

    Oligomannose N-glycan with 3 mannose residues, 100pmol.

    m/z: 1030.3965
